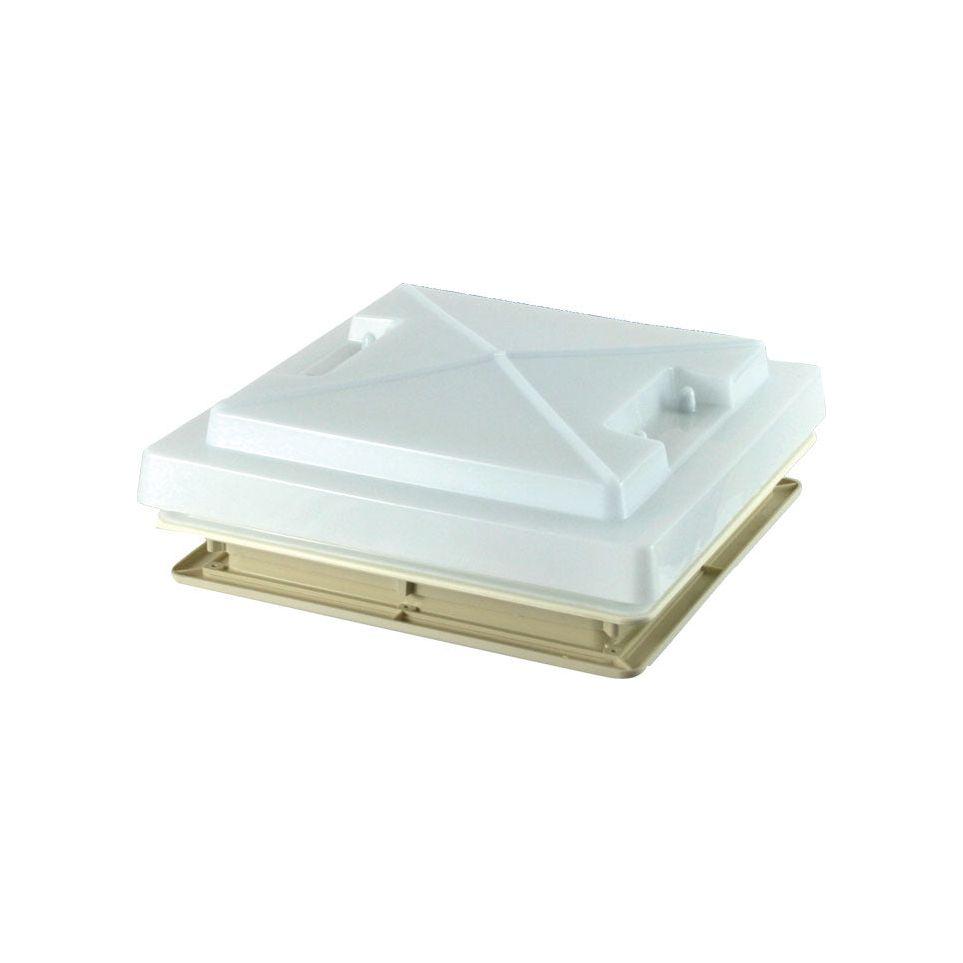

MPK420 Rooflight/Net/Blind - White

MPKMulti directional rooflight with opaque, flexible double skinned dome and beige frame. Telescopic arms allows the rooflight to be opened to any side.

The dome skins have spacers between to guarantee free airflow that cannot be reduced by snow weight,

Comes complete with removable flynet.

Aperture: 400 x 400 mm
Roof thickness: 42-70 mm
Corner radius:  23 mm
Site dome:  470 x 470 mm
Height over roof:  91 mm
Ventilation:  150 / 30 cm²
Weight:  2.5 kg
Size inner frame:  470 x 470 x 14 mm
Outer frame material:  Polypropylene
Dome material:  Polypropylene
Speed limit:  130 km/h

Included:

1x Rooflight with outer frame
1x Inner frame
1x Flynet frame and blind

Additionally required (not included)

1x Elastic sealant adhesive,
8x Fixing screws for the upper frame (Pan 3,5 mm / head according to DIN ISO 7049 (DIN 7981))
The length of the screw should be determined by the roof thickness, plus approximately 10 mm for the screw to enter the upper frame.
